Floorplan - 2017 Jayco Pinnacle 36RSQS
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
- Our Price: $38,500
- List Price: $53,500
- Discount: $15,000
-
41ft long
-
12,865 lbs
-
Sleeps 4
-
4 slides
-
Rear Living AreaFront Bedroom

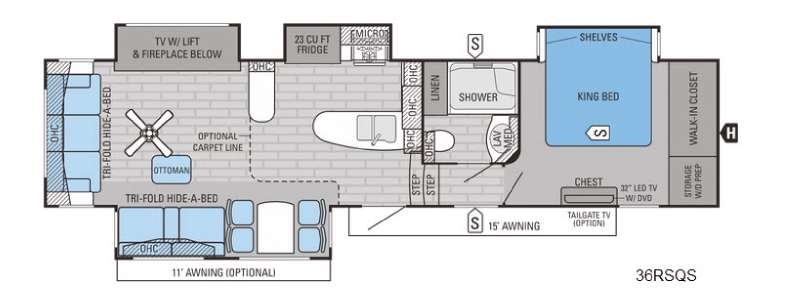

36RSQS Floorplan
Specifications
| Sleeps | 4 | Slides | 4 |
| Length | 40 ft 8 in | Ext Width | 8 ft 6 in |
| Ext Height | 13 ft 3 in | Int Height | 6 ft 11 in |
| Interior Color | Mocha, Ivory, Hazel, Auburn | Exterior Color | Standard, 2 Premium Paint Pkg. |
| Hitch Weight | 2765 lbs | GVWR | 15950 lbs |
| Dry Weight | 12865 lbs | Cargo Capacity | 3085 lbs |
| Fresh Water Capacity | 75 gals | Grey Water Capacity | 85 gals |
| Black Water Capacity | 50 gals | Tire Size | 16" |
Description
With a rear living area and quad slides you can easily entertain a few friends while in the 36RSQS Pinnacle fifth wheel by Jayco.
As you enter the fifth wheel, to the left is a slide with a free-standing table and chairs, and a tri-fold hide-a-bed with an overhead cabinet or choose optional reclining chairs. Along the rear wall you will find a tri-fold hide-a-bed or you can choose an optional reclining sofa. There is an additional slide with a TV cabinet with lift.
The kitchen area has a slide with a large refrigerator, microwave, and three burner range. There is an l-shaped counter which provides lots of counter space as well as a double kitchen sink.
At the top of the stairs is the bathroom. Inside the bathroom you will find a toilet, shower, linen cabinet for towels or toiletries, sink, and medicine cabinet.
The bedroom offers a king bed slide, walk-in closet, storage, washer and dryer prep, and a chest of drawers with a 32" LED TV with DVD above the chest.
You can even choose an optional queen bed in place of the king bed.
Features
- 15,000-BTU central A/C
- Arched interior ceiling with 82” upper deck interior height
- Bath skylight
- Bathroom power vent
- Bedspread
- Under-bed floor safe
- Oversized folding exterior grab handle
- Frameless G20 dark-tinted windows
- LED interior lighting
- Security lights
- Slam-latch baggage doors with strut assist
- Sofa and bed pillows
- Solid-surface kitchen countertops
- Keyed Alike exterior doors locking system
Luxury Fifth Wheel Package (mandatory)
- 6-point electric auto leveling system
- Backup camera/monitoring system prep
- Carefree power awning with Flex Guard Fabric Shield and LED light strip
- Indoor/outdoor central vacuum system with kick pan
- Franklin American-made residential furniture
- 12” Magnum Frame System
- Magnum Truss XL6 Roof System
- Helix Cooling System featuring a Jayco-exclusive duct design, exterior-mounted A/C units, directional/closable A/C vents, and larger return air vents with user accessible filters
- Quad-tread aluminum entrance steps
- Bluetooth/HDMI high-output entertainment system
- Cargo accessory receiver
- Electric, thermostat-controlled fireplace
- Keyless main entrance door
- LED exterior lighting
- MOR/ryde pin box
- Oversized battery compartment
- Fully painted and clear coated front cap
- Power kitchen vent with wall controls and rain sensor
- Sidewall and roof mount solar prep
- Whole coach water purification system
- Full-timer kitchen storage system
Pinnacle Advantage Package
- MOR/ryde LRE/4000 suspension system with wet-bolt fasteners
- Gel 360 front cap, rear cap and sidewalls (all gelcoat fiberglass)
- Big-screen LED HDTVs in living areas
- Jayco luxury sleep system with Simmons residential foam-top mattress
- Dual sun shade and blackout roller shades in living room
- 32-inch LED HDTV with integrated DVD player in bedroom
- Residential natural cherry hardwood cabinet doors, miter-cut with 3-inch rails
- Oversized 36-inch-wide residential showers
- Powered 50-amp cord reel
- Sliding, freestanding table with 2 dinette chairs and 2 folding chairs
- Stainless-steel convection microwave oven
- Remote control system for levelers, awnings, slideout rooms and exterior lights
- Blackout roller shades in bedroom
- Wood mantle fireplace surround with hidden storage and pullout drawer
- Wide-body, 102-inch frame
- Wide-stance front landing gear
- TuffShell vacuum-bonded, laminated walls
- Climate Shield:
- - Enclosed, insulated, heated underbelly
- - High-BTU output furnace (40,000-BTU)
- - Astrofoil in roof and floors
- Aerodynamic front and rear cap with LED lights
- Seamless composite roof covering
- 12-inch I-class cambered, structural-steel I-beams
- 16-inch radial tires
- 7,000-pound axles
- Completely enclosed and protected slideout mechanisms
- Frameless, dark-tinted, safety-glass windows
- 30-inch x 78-inch entry door with oversized window
- Screen door with kick plate
- Exterior marine-grade speakers (2)
- Convenience outlet located on front awning arm
- ExpansiView opera-style dining area windows
- Enclosed, protected basement drop-frame
- Cable TV and outlet in basement
- Convenient dual propane compartment (60-pound capacity) on off-doorside
- Doorside compartment framed and vented for third propane bottle
- Stor-Galore pass-through basement storage
- Heated, enclosed Uni-Dock utility center
- 50-amp power service
- 75-gallon fresh water tank
- 50-gallon black tank capacity minimum (n/a 38FLSA)
- Cable/satellite TV prep
- Digital TV antenna
- Outside grill prep
- Under-mounted spare tire
- Roof ladder
- Hitch light
- Upper deck slideout convenience light
- EZ-Cord cargo area extension cord access port
- Cargo area storage system (select models)
- Custom residential miter-cut cherry cabinet doors with hidden hinges
- Hardwood cherry cabinet stiles
- Hardwood slideout fascia
- Residential-style pantry with pull-out drawers
- Steel ball-bearing drawer guides, 75-pound capacity with full extension
- Large-split, under-mounted, stainless-steel sink
- Residential-grade, pull-out kitchen faucet
- Water heater bypass
- 23-cubic-foot residential refrigerator with water/ice in door
- 1,000-watt inverter
- Flush-mounted, oversized, 21-inch oven with recessed glass cover
- Residential-grade wood-plank vinyl flooring
- Shaw R2X stain-resistant residential carpeting
- Night light toe-kick lighting in bedroom, bathroom and kitchen
- 90-amp power center with Charge Wizard
- Backlit Command Center for switches
- Closeable and directional A/C vents
- Prep for second A/C – prewired and tied into main ducting
- Prep for third A/C – prewired
- Tri-fold hide-a-bed sofas with ottoman
- Ceiling fan (n/a 38FLSA)
- Hardwood ceiling mantle with pendant lighting
- LED ceiling lights throughout
- 78-inch height in living area slideout rooms
- Porcelain bath stool with foot flush
- Under-mounted stainless-steel bathroom sink
- Utility hooks in bathroom
- Oversized 34” skylight above shower
- Hardwood headboard
- Full-trunk, under-bed storage
- Walk-in-style front closet with dual hanging rods and cedar lining
- Mullion-style front wardrobe doors
- Washer/dryer prep (accommodates stackable unit)
- Oversized bedroom dresser storage
- Bedroom slide fascia built-in night stand storage system
- Canadian Standards
- Customer Value Package - 15,000 BTU Central Air, Arched Interior Ceilings, Bath Skylight, Bathroom Power Vent, Bedspread, Floor Safe, Folding Exterior Grab Handle, Frameless Dark Tint Windows, LED Interior Lighting, Security Lights, Slam Latch Baggage Doors, Sofa and Bed Pillows, Solid Surface Kitchen Countertops, Keyed Alike Exterior Door Locking System
- CVP - 15,000 BTU Central Air w/Heat Pump
- Jayco Luxury Fifth Wheel Package - 6 pt. Electric Auto Leveling System, Backup Camera Prep, Bluetooth/HDMI Entertainment System, Cargo Accessory Receiver, Carefree Power Awning with Flex Guard Fabric Shield & LED Light Strip, Central Vacuum, Electric Fireplace, Keyless Main Entrance Door, Franklin Brand American Made Residential Furniture, LED Exterior Lighting, Fully Painted and Clear Coated Front Cap, 12" Magnum Frame System, Magnum XL6 Roof Truss System, Oversized Quad Aluminum Tread Entrance Steps, Mor/Ryde Pin Box, Oversized Battery Compartment, Painted Gelcoat Fiberglass Front Cap, Power Kitchen Vent, Solar Prep, Helix Cooling System, Whole Coach Water Purification System, Fulltimer Kitchen Storage
- Pinnacle Package - Mor/ryde LRE 4000 Suspension System, Gel 360 - Front Cap, Rear Cap, Sidewalls all Gel Coat Fiberglass, Big Screen LED HDTV's in Living Area, Jayco Luxury Sleep System with Simmons Residential Foam Mattress, Wood Mantle Fireplace Surround with Hidden Storage/Pullout Drawer, Dual Sun Shade/Blackout Roller Shades in Living Areas, Blackout Roller Shades in Bedrooms, 32" Bedroom TV with Integrated DVD Player, Residential Heritage Mocha Cherry Hardwood Cabinet Doors, Miter Cut with 3" Rails, Oversized 36" wide Residential Showers, Powered 50 amp Cord Reel, Sliding Free Standing Table w/4 Chairs, Stainless Steel Convection Microwave Oven, Remote Control/Digital Command System for Levelers, Awnings, Sliderooms & All Lights
- Queen Bed
- On Demand Tankless Water Heater System
- Carpet in Living Area (36FBTS, 36KPTS, 36RSQS, 37MDQS, 38REFS, 39SPQS)
- Reclining Sofa (36FBTS, 36KPTS, 36RSQS, 37MDQS, 37RSTS, 38REFS, 39SPQS)
- Recliner Chairs (2) ILO Theater Seating Sofa (36FBTS, 36KPTS, 36RSQS)
- 18 cu.ft. Polar Max Norcold gas/electric Refrigerator w/Ice Maker
- Backup Camera
- Tailgate TV: 39" TV in Cargo Area (36FBTS, 36KPTS, 36RSQS, 37MDQS, 38FLSA, 38REFS)
- 16" G Rated Goodyear Tires & Rims MANDATORY GOODYEAR TIRES - MUST SELECT ONE
- Electric Euro Lift Bed (37RSTS)
- Goodyear Tire Option (Made in the USA) MANDATORY GOODYEAR TIRES - MUST SELECT ONE
- 2nd A/C (Low-Profile) in Bedroom (15K BTU)
- 3rd A/C (Low-Profile) in Living Area (15K BTU) (38FLSA)
- Sanicon Turbo Sewer Macerator Dump System
- Generator Prep with 120lb Max LP System
- 5500 Watt Onan Microquiet Generator
- Dual Pane All Weather Windows
- Removable Patio Steps (39SPQS)
- Mor/Ryde Sliding Cargo Tray
- 2nd Power Awning (36FBTS, 36KPTS, 36RSQS, 37MDQS, 37RSTS, 38REFS)
- Slideout Awning with Metal Wrap (3) (36FBTS, 36KPTS, 37RSTS)
- Slideout Awning with Metal Wrap (4) (36RSQS, 37MDQS, 38FLSA, 39SPQS)
- Slideout Awning with Metal Wrap (5) (38REFS)
- Exterior Grill
