Sleeps 4
-
3 Slides
-
Rear Living AreaOutdoor Kitchen
-
33ft Long
-
9,210 lbs

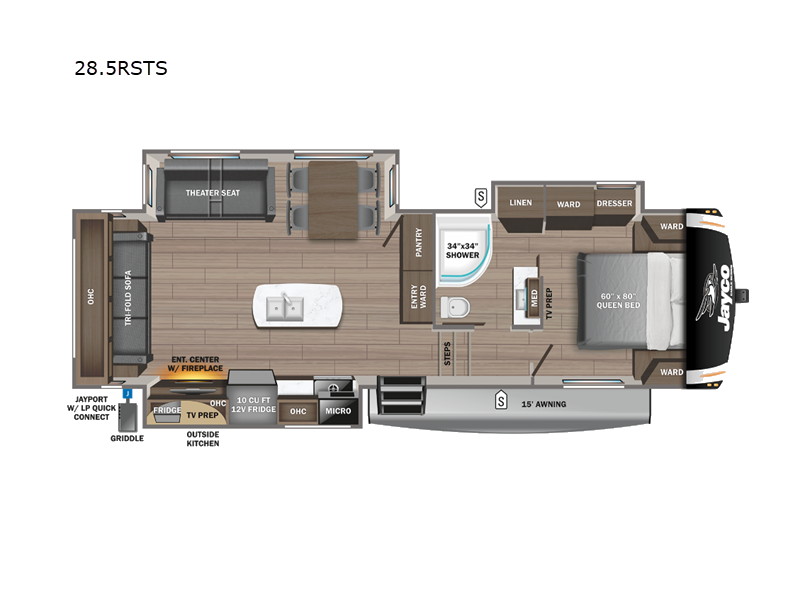

28.5RSTS Floorplan
Specifications
Sleeps | 4 | Slides | 3 |
Length | 32 ft 8 in | Ext Width | 8 ft 1 in |
Ext Height | 12 ft 6 in | Int Height | 6 ft 2 in |
Hitch Weight | 1655 lbs | GVWR | 11250 lbs |
Dry Weight | 9210 lbs | Cargo Capacity | 2040 lbs |
Fresh Water Capacity | 81 gals | Grey Water Capacity | 80 gals |
Black Water Capacity | 43 gals | Tire Size | ST225/75R15E |
Furnace BTU | 35000 btu | Available Beds | Queen |
Refrigerator Type | 12V | Refrigerator Size | 10 cu ft |
Cooktop Burners | 3 | Number of Awnings | 1 |
LP Tank Capacity | 30 lbs | Water Heater Type | Tankless |
AC BTU | 15000 btu | TV Info | LR LED Smart HDTV |
Awning Info | 15' Electric w/Integrated Dimmable LED Lights | Axle Count | 2 |
Washer/Dryer Available | Yes | Number of LP Tanks | 2 |
Shower Type | Radius | Electrical Service | 50 amp |
VIN | 1UJCA0BR1P1PR0189 |
Description
Jayco Eagle HT fifth wheel 28.5RSTS highlights:
- Kitchen Island
- Front Private Bedroom
- Fireplace
- USB Charging Ports
- Outside Shower
- Outside Kitchen
Don't pass up your chance to camp in true comfort with this fifth wheel! It features a rear living area with a tri-fold sofa for an afternoon nap and theater seating across from the entertainment center with a fireplace. The chef can choose to either prepare their meals indoors with the kitchen island and the three burner stainless steel range or at the outside kitchen with a refrigerator to enjoy a cold beverage while cooking. Hang your coats in the entry wardrobe and store your canned goods in the kitchen pantry. The dual entry bathroom has a radius shower to clean up in and is easy to access, especially those staying in the front private bedroom. The bedroom also has a wardrobe slide with a dresser and linen closet, as well as wardrobes on either side of the queen bed!
The Jayco Eagle HT fifth wheels and travel trailers include many features to make camping easier than ever! They are lightweight, making them easy to tow, and the JAYCOMMAND "Smart RV" system lets you control your RV's functions from a tablet or smartphone! Each model is constructed with Stronghold VBL lamination, the lightest, yet strongest in the industry, along with a durable Magnum Truss roof system that can withstand 4,500 lbs. The 4 Star Handling Package includes Goodyear Endurance tires, Dexter axles with Nev-R-Adjust brakes and E-Z lube hubs, and a MORryde CRE-3000 rubberized suspension for hassle-free towing. Head inside to find handcrafted and glazed doors, drawers, and trim, residential vinyl flooring, blackout roller shades, plus many more at-home comforts. These models are also pre-wired for an inverter and you can add the optional solar packages to enjoy off-grid camping when the adventure calls for it!
Features
Standard Features (2023)
***PLEASE NOTE: Features and Options separated by type below
------------------------------------------------------
FIFTH WHEELS
Standard Exterior Equipment
- StrongholdVBL™ aluminum framed and vacuum bond laminated gel-coated fiberglass exterior walls (including rear wall and slide room end walls)
- Magnum Truss™ Roof System with one piece seamless roofing material with 20 year warranty
- Climate Shield™ zero-degree tested weather protection:
- Fully enclosed and heated underbelly (ducted)
- 35,000 BTU output furnace
- Double layer fiberglass batt insulation in ceiling and floor
- Double sided radiant barrier insulation (roof, floor and behind cap)
- PEX plumbing
- HELIX Cooling System™ (industry exclusive):
- Jayco exclusive insulated dual duct design
- Directional and closeable A/C vents
- Larger return air vents with user accessible filters
- JaySMART™ (Safety Markers And Reverse Travel) LED lighting (patent-pending)
- Painted fiberglass front cap with built-in specialty LED lighting
- Custom automotive-grade vinyl exterior graphics package
- LED exterior lighting package
- Detachable shore power cord
- Dual 30 lb. propane bottles with auto regulator
- Pass-through storage with Slam-latch™ baggage doors
- Digital TV antenna with Wi-Fi prep
- Dual channel exterior marine-grade speaker
- Fully enclosed, LED-lighted universal docking center:
- Selectable water connections
- Quick-connect outside shower, Black tank flush, winterization, and sanitization
- Independent satellite and whole coach cable hookups
- Water heater bypass
- Battery disconnect
- Under-mounted spare tire
- LP quick connect
- Roof ladder
- Slide topper/awning prep
- "Industry's BEST" outside kitchen (select models)
Standard Interior Equipment
- Solid hardwood slide fascia
- Handcrafted and glazed doors, drawers and trim
- Heavy-duty, 75 lb., full-extension, steel ball-bearing drawer guides
- 5/8 in. tongue-and-groove joined plywood floor decking
- Residential vinyl flooring (made in the USA)
- Residential vinyl flooring in slideouts (no carpet)
- LED dimmer switches (multiple locations)
- Tri-fold hide-a-bed sofa with residential sleep surface (select models)
- Theater seating (select models)
- Stainless steel kitchen sink
- Matte black kitchen faucet with pull-out sprayer
- Dual USB charging ports (multiple locations)
- Extra 120V power outlets in kitchen and slide rooms (where applicable)
- Residential quilted bedspread and pillows
- Gas-strutted under-bed storage
- Inverter pre-wire (multiple locations)
- C.P.A.P. prepped bedroom
- Carbon monoxide and LP detector
- Bathroom skylight
- LED backlit medicine cabinet with custom framed mirror
- Bathroom tile backsplash
- Porcelain foot flush toilet
Customer Value Package (Mandatory)
- MORryde® StepAbove™ entrance steps (main entrance) with blue LED light
- 15,000 BTU "Whisper Quiet" A/C
- 50-amp service with dual A/C ducts and second A/C prep
- Electric patio awning with integrated dimmable LED lights
- 60,000 BTU tankless hot water system
- Custom machined aluminum rims
- Rear 2 in. towing receiver with 4 pin connector
- Keyed-Alike™ lock system (single key for all doors/locks)
- Rooftop and ground solar prep by Go Power!®
- Security monitor prep-observation camera prep (rear, sides and entrance door)
- Hidden hinges on cabinet doors
- Upgraded friction hinge entrance door with XL grab handle
- LED HDTV with fully digital HDMI® output
- 12V A/V system with Bluetooth® and HDMI®
- Stainless steel range with glass cover
- Stainless steel 30 in. over the range microwave
- Residential queen (60 in. x 80 in.)mattress with under bed storage
- Rain-proof bathroom power vent
4 Star Handling Package (Mandatory)
- Goodyear® Endurance® Tires (made in the USA, load range 'E')
- Dexter® Axles with Nev-R-Adjust® brakes and E-Z Lube® hubs
- MORryde® CRE-3000™ rubberized suspension
- Wet bolt fasteners, bronze bushings, and shock absorber prep
Luxury Package (Mandatory)
- Electric auto-leveling
- Rotational pin box
- JAYCOMMAND® "Smart RV" System
- 10 cu. ft. 12V refrigerator
- Blackout roller shades
- Residential style glass shower doors
- Tire Pressure Monitoring System (TPMS)
Options
- Dry Camping Package (generator prep and extra LP capacity)
- Extreme Weather Package with 110V heat pads (110V heat pads with 12V heat tape on main water line)
- 360° security kit with 7 in. monitor
- Frameless dual-pane tinted safety-glass windows
- Canadian Standards (CSA)
- Free-standing rustic table with leaf and bench seat, 2 storage and 2 folding chairs
- Free-standing rustic table with leaf and 2 storage and 2 folding chairs
- Booth dinette (select models)
- LED fireplace and electric heater (standard on select models)
- Wall-hugger theater seating (standard on select models)
- 8 cu. ft gas/electric refrigerator
- 4 door gas/electric refrigerator (select models)
- Extreme Weather Package with 110V heat pads (110V heat pads with 12V heat tape on main water line)
- Outside griddle for JayPort System (select models)
- Residential 72 in. x 80 in. king size mattress
- Overlander 2 Solar Package: (2) 200W solar panels, 30-amp digital controller and 1800W inverter
- Overlander 4 Solar Package: (4) 200W solar panels, (2) 100-amp/hour lithium heated batteries, 60-amp controller, 3000W inverter, DC/DC power converter, soft start power save main 15K A/C, soft start power save for bedroom 15K A/C (if optioned), battery monitor, energy management system, roof pre-wire for additional solar panels, generator prep capable and heavy gauge steel battery enclosure
-------------------------------------------------------
TRAVEL TRAILERS
Standard Exterior Equipment
- StrongholdVBL™ aluminum framed and vacuum bond laminated gel-coated fiberglass exterior walls (including rear wall and slide room end walls)
- Magnum Truss™ Roof System with one piece seamless roofing material with 20 year warranty
- Climate Shield™ zero-degree tested weather protection:
- Fully enclosed and heated underbelly (ducted)
- 35,000 BTU output furnace
- Double layer fiberglass batt insulation in ceiling and floor
- Double sided radiant barrier insulation (roof, floor and behind cap)
- PEX plumbing
- HELIX Cooling System™ (industry exclusive):
- Jayco exclusive insulated dual duct design
- Directional and closeable A/C vents
- Larger return air vents with user accessible filters
- JaySMART™ (Safety Markers And Reverse Travel) LED lighting (patent-pending)
- Painted fiberglass front cap with built-in specialty LED lighting
- Custom automotive-grade vinyl exterior graphics package
- LED exterior lighting package
- Detachable shore power cord
- Dual 30 lb. propane bottles with auto regulator
- Pass-through storage with Slam-latch™ baggage doors
- Digital TV antenna with Wi-Fi prep
- Dual channel exterior marine-grade speaker
- Fully enclosed, LED-lighted universal docking center
- Selectable water connections
- Quick-connect outside shower
- Black tank flush, winterization, and sanitization
- Independent satellite and whole coach cable hookups
- Water heater bypass
- Battery disconnect
- Under-mounted spare tire (Goodyear® Endurance®- made in the USA)
- LP quick-connect
- Slide topper/awning prep
- "Industry's BEST" outside kitchen (select models)
Standard Interior Equipment
- Solid hardwood slide fascia
- Handcrafted and glazed doors, drawers and trim
- Heavy-duty, 75 lb., full-extension, steel ball-bearing drawer guides
- 5/8 in. tongue-and-groove joined plywood floor decking
- Residential vinyl flooring (made in the USA)
- Residential vinyl flooring in slide outs (no carpet)
- LED dimmer switches (multiple locations)
- Tri-fold hide-a-bed sofa with residential sleep surface (select models)
- Theater seating (select models)
- Stainless steel kitchen sink
- Matte black kitchen faucet with pull-out sprayer
- Dual USB charging ports (multiple locations)
- Extra 120V power outlets in kitchen and slide rooms (where applicable)
- Residential quilted bedspread and pillows
- Gas-strutted under-bed storage
- Inverter pre-wire (multiple locations)
- C.P.A.P. prepped bedroom
- Carbon monoxide and LP detector
- Bathroom skylight
- LED backlit medicine cabinet with custom framed mirror
- Bathroom tile backsplash
- Porcelain foot flush toilet
Customer Value Package (Mandatory)
- MORryde® StepAbove™ entrance steps (main entrance) with blue LED light
- 15,000 BTU "Whisper Quiet" A/C
- 50-amp service with dual A/C ducts and second A/C prep
- Electric patio awning with integrated dimmable LED lights
- 60,000 BTU tankless hot water system
- Custom machined aluminum rims
- Rear 2 in. accessories receiver
- Keyed-Alike™ lock system (single key for all doors/locks)
- Rooftop and ground solar prep by Go Power!®
- Security monitor prep-observation camera prep (rear, sides and entrance door)
- Hidden hinges on cabinet doors
- Upgraded friction hinge entrance door with XL grab handle
- 4K LED Smart HDTV with fully digital HDMI output
- 12V A/V system with Bluetooth® and HDMI®
- Stainless steel range with glass cover
- Stainless steel 30 in. over the range microwave with exhaust fan
- Rain-proof bathroom power vent
4 Star Handling Package (Mandatory)
- Goodyear® Endurance® Tires (Made in the USA, load range 'E')
- Dexter® Axles with Nev-R-Adjust® brakes and E-Z Lube® hubs
- MORryde® CRE-3000™ rubberized suspension
- Wet bolt fasteners, bronze bushings, and shock absorber prep
Luxury Package (Mandatory)
- JAYCOMMAND "Smart RV" system (Pro tablet)
- LED fireplace with electric space heater
- 10 cu. ft. 12V refrigerator
- Blackout roller shades
- Residential style glass shower doors
- Tire pressure monitoring system (TPMS)
- Washer/dryer prep (select models)
Options
- Extreme Weather Package with 120V heat pads (110V heat pads with 12V heat tape on main water line)
- Generator prep
- 2nd 15,000 BTU A/C
- 360° security kit with 7 in. monitor
- Overlander 2 Solar Package: (2) 200W solar panels, 30-amp digital controller and 1800W inverter
- Frameless dual-pane tinted safety-glass windows
- Canadian Standards (CSA)
- Electric auto-leveling system
- 8 cu. ft. gas/electric refrigerator
- Free-standing rustic table with leaf, bench seat, 2 storage and 2 folding chairs
- Free-standing rustic table with leaf, 2 storage and 2 folding chairs
- Booth dinette (select models)
- Bedroom LED fireplace, electric heater (320FBOK only)
- Wall-hugger theater seating (standard on select models)
- 4 door gas/electric refrigerator (select models)
- 2nd A/C ducted in bedroom
- Residential 72 in. x 80 in. king-size mattress
- Residential 60 in. x 80 in. queen size mattress with under bed storage
- Outside griddle for JayPort system (select models)
- Overlander 4 Solar Package: (4) 200W solar panels, (2) 100-amp/hour lithium heated batteries, 60-amp controller, 3000W inverter, DC/DC power converter, soft start power save main 15K A/C, soft start power save for bedroom 15K A/C, battery monitor, energy management system, roof pre-wire for additional solar panels, generator prep capable and heavy gauge steel battery enclosure
Please see us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
Save your favorite RVs as you browse. Begin with this one!
-
Like to have your own RV? Hint:Wehr RV
People, product selection and price. Mike Sommer was product knowledgeable and very personable. Absolutely no sales pressure. I said "Make me an deal I can't refuse." They did. -
Wonderful folks!
Thanks again to Wehr RV!! Jed, Josh, Roy, Robert, and Lee…y’all went above and beyond to help get us on our way. You really did treat us like family! We’ll definitely be back for all our RV needs. -
Love It!
My wife and I look around all over Springfield for our camper and we decided to go with Wehr over other dealerships in Springfield. Did not feel pressured at all, great staff and work their hardest to get you into a camper you want. Will not try to sell you something you dont want just to make the sale.
Loading
Wehr RV is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @800-288-6827 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.
Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.
